| Product Model |
F-Cutter 0960、F-Cutter1210、F-Cutter1510 |
| Product Item |

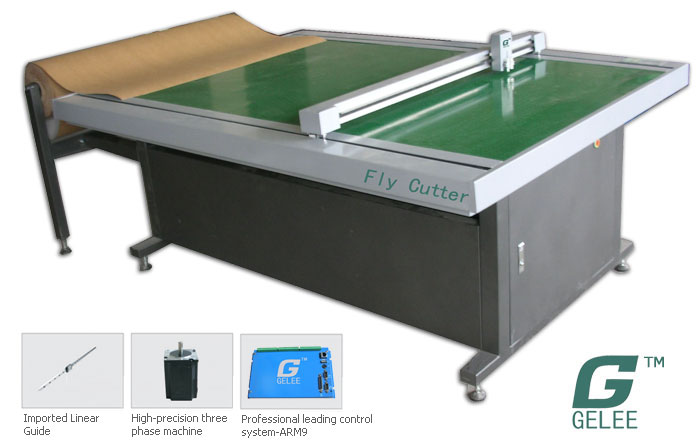

Gelee FLY Cutter High-speed cutting machine |
| Fix Manner |
Vacuum Absorption |
| Transmission Material |
High-Precision Synchronous Belts |
| Effective Cutting Range |
900x600mm\1200x1000mm\1500x1000mm |
| Cutting Material |
Red hard paper board, Plastic paper, White paper board, Kraft paper, Fiber hark paper |
| Cutter Way |
Drawing by pen, half cutting, whole cutting |
| Cutting Thickness |
0.2 ~ 1.5 mm |
| Cutting Precision |
≤ 0.01 mm |
| Machine DPI |
≤ 0.02 mm |
| Repetition Precision |
≤ 0.05 mm |
| Max Working Speed |
1400 mm / S |
| Working time & character |
Capable of continuous operations. Computer Operation and cutting machines can be used simultaneously for quick data transmission |
| Data Transfer Port |
International standards: Parallel interface, serial port, USB disk Reading, Network transmission, Wireless Transmission |
| Buffer Capacity |
Large-capacity buffer. Data can be quickly completed by one-off transfer |
| Directive System |
International standards:Chose HP-GL or DM-PL, any format of CAD software is compatible |
| Digital Control Panel |
Liquid crystal display and contact button All the menu in China |
| Cutter Shape |
A variety of tungsten steel cutter |
| Pen Shape |
A variety of common gelpens, oily pens, ball pens |
| Main Formation |
Cutting platform, Machine head, Transmission System, ARM9 |
| Working Voltage |
Control System, Vacuum Pump |
| Fuse Specification |
5A |
